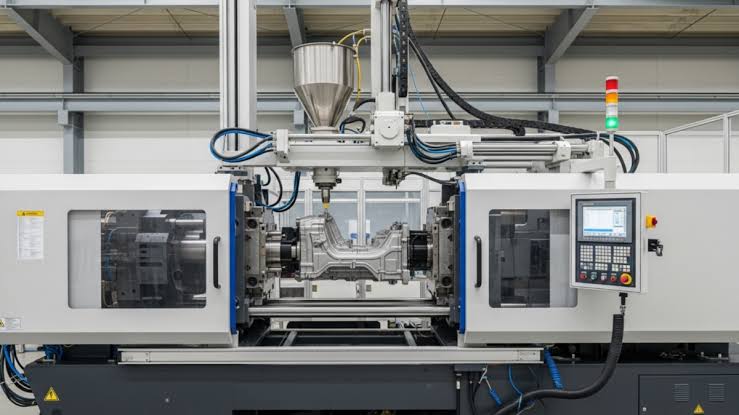

What Makes a Reliable OEM Injection Mold Supplier Stand Out?

A reliable OEM injection mold supplier should prove performance through engineering records, tooling specifications, measured samples, and repeatable molding conditions. For a mold planned for 1 million cycles, buyers should verify steel grade, hardness, replaceable wear areas, cooling layout, dimensional reports, and maintenance requirements before approving production. Cooling can occupy up to 80% of an injection molding cycle, while Autodesk notes that packing can add 5–25% more material after cavity filling. A supplier that records cavity-by-cavity dimensions, T1/T2 changes, process settings, and drawing revisions gives an OEM team enough information to judge whether the mold can maintain cost, output, and part consistency over its planned service life.

The first useful comparison between suppliers happens before machining starts. Two quotations can describe the same 4-cavity mold but differ in mold steel, heat treatment, slide construction, cooling circuits, hot-runner hardware, spare inserts, and expected cycle life. A production program requiring 800,000 parts per year needs a different tooling specification from a program requiring 40,000 parts, even when both use the same CAD model.

The supplier should therefore review annual volume, resin, molding-machine size, part weight, wall thickness, assembly interfaces, surface requirements, dimensional tolerances, and expected maintenance interval before releasing the mold design. A 2-cavity mold running a 30-second cycle produces a theoretical 240 parts per hour; at 85% production availability, output falls to about 204 parts per hour, making cycle assumptions part of the commercial calculation.

That calculation becomes more accurate after DFM review. Draft angle, ribs, bosses, shutoffs, slides, lifters, gate location, ejection, weld lines, venting, texture, and parting-line position should be checked against the actual resin and assembly requirement rather than reviewed as isolated CAD features.

A wall change from 3.0 mm to 2.4 mm, for example, changes local cooling time, packing behavior, sink tendency, and material use by 20% in that section. A supplier should show the proposed change on the model, identify the dimension affected, and state whether the revision changes tooling cost or timing.

“DFM approved” is not enough information for an OEM engineer. A useful DFM file should show the affected geometry, the proposed dimension, the molding reason, and the drawing revision used for review.

Dimensional planning follows the geometry review because molded plastic cannot be treated like machined metal. ISO 20457:2026, published in August 2026, covers dimensional and geometrical tolerances for plastic molded parts and notes that material behavior, shrinkage, processing conditions, geometry, warpage, and uneven cooling can produce larger dimensional variation than is normally expected in metal parts.

A supplier should therefore separate mold machining tolerance from finished-part tolerance. If an assembly drawing specifies 50.00 ±0.05 mm, the mold shop cannot simply machine the corresponding cavity feature to 50.00 mm and assume the plastic part will match it; resin shrinkage, packing pressure, mold temperature, fiber orientation, and measurement conditions all affect the result.

Tolerance discussions should also separate functional dimensions from general dimensions. Holding ±0.05 mm on 5 mating features may be justified, while imposing the same tolerance on another 35 cosmetic or non-mating dimensions can add machining, fitting, measurement, and modification work without improving assembly.

A practical inspection plan can therefore classify dimensions before T1:

• 5–10 assembly or sealing dimensions measured on every sampled cavity

• General dimensions checked against the approved drawing revision

• Flatness, concentricity, or position checked where mating components require them

• Cosmetic surfaces evaluated separately from dimensional acceptance

• Cavity number recorded on every measured sample from multi-cavity molds

That structure matters more as cavity count rises. On an 8-cavity tool, measuring one part provides information from only 12.5% of the cavities; measuring 5 parts from every cavity produces a 40-piece sample set and makes cavity-to-cavity differences much easier to identify.

Inspection data should then feed back into machining and fitting. CMM reports, electrode inspection, tool-steel certificates, hardness records, cavity identification, and heat-treatment documentation allow the OEM team to distinguish a tool dimension issue from normal molding variation.

Tool construction also needs to match the planned production quantity. A mold expected to run 100,000 cycles can use a different combination of steels and wear components from one expected to exceed 1,000,000 cycles, so buyers should ask for the intended cycle rating in writing rather than accept the phrase “long mold life.”

For high-cycle molds, buyers can examine hardness, guided ejection, interlocks, wear plates, replaceable gate inserts, slide wear surfaces, and spare components. If an insert costs $700 to replace but avoids removing and reworking a much larger cavity block after 600,000 cycles, maintainability becomes part of the tooling specification rather than an after-sales issue.

Cooling design comes next because it has a large effect on machine hours. Autodesk states that cooling usually represents about 80% of total injection molding cycle time, and its Moldflow documentation describes cooling as normally the longest stage of the cycle.

A mold running at 32 seconds completes 112.5 cycles per hour. Reducing the cycle to 28 seconds raises theoretical output to about 128.6 cycles per hour, a 14.3% increase; on a 4-cavity mold operating 4,500 hours per year, the theoretical difference exceeds 289,000 parts before downtime and scrap are included.

Cooling drawings should therefore show more than channel locations. The OEM team should review circuit diameter, channel distance from the cavity surface, circuit length, water direction, baffles, bubblers, inserts, slide cooling, inlet and outlet identification, and accessibility for cleaning.

Uneven cooling also affects dimensions, so cycle time cannot be reviewed by itself. If one side of a housing stays hotter during the same 28-second cycle, local shrinkage and warpage can differ even when injection pressure and resin lot are unchanged; mold-temperature data and cavity measurements can show whether the geometry remains stable.

Gate and runner design should be reviewed with the same production data. Autodesk notes that the packing stage can add approximately 5–25% more material after filling to compensate for shrinkage, with gate freeze determining when material can no longer enter or leave the cavity.

For that reason, a hot runner should not be selected only because a mold has 8 or 16 cavities. Resin sensitivity, gate mark requirements, runner weight, annual shot count, color changes, heater access, thermocouple replacement, spare nozzle availability, and the molding plant’s maintenance experience should be reviewed together.

The Injection molding manufacturer for OEM projects should also document what happens during mold trials rather than supply only sample photos. A T1 report can record resin grade, drying conditions, melt temperature, mold temperature, injection time, holding pressure, cooling time, total cycle time, shot number, machine used, cavity number, and visible defects.

A simple sample plan makes trial data more useful. With a 4-cavity mold, collecting 5 consecutive stable shots gives 20 parts; measuring each cavity separately can show whether a 0.08 mm deviation belongs to one cavity or appears across the whole tool.

One useful T1-to-T2 record might show cavity 3 changing from 50.17 mm to 50.04 mm after an insert correction against a drawing requirement of 50.00 ±0.05 mm. The numerical change is more useful than a statement saying the mold was “improved.”

Trial records should connect with revision control because OEM parts often change during tooling. Every geometry update should carry a revision number, date, updated 2D and 3D files, affected mold components, approved cost change, and revised T1 or shipment date.

If revision C was approved on May 8, 2026, but the machine shop cuts an insert from revision B, even accurate CNC machining produces the wrong geometry. A supplier’s document-control process should therefore show which revision was released to design, CNC, EDM, inspection, and molding.

Quality-system documentation provides another comparison point. ISO reports more than 1 million ISO 9001 certificates across 189 countries, while the sixth edition of ISO 9001 was under publication in September 2026; certificate scope and validity should still be checked against the actual mold-making or molding site.

An audit should go beyond the certificate and review calibration records, drawing control, nonconforming-material procedures, preventive machine maintenance, steel traceability, CMM capability, mold-trial records, and storage practices. Reviewing 3 completed molds with similar cavity count, resin, and tolerance requirements gives a buyer more usable information than looking at 50 unrelated mold photographs.

Project reporting should be measured in the same way. A schedule can separate DFM, mold design, steel purchase, rough machining, heat treatment, finish machining, EDM, fitting, T1, modification, T2, dimensional approval, and shipment; if design approval slips 6 days, the updated schedule should show which later dates move.

Commercial comparison becomes clearer once engineering details are fixed. Each quotation should state cavity count, mold steel, hardness, mold base, runner system, hot-runner brand where applicable, gate type, texture, cycle-life target, number of included trials, sample quantity, spare components, lead time, packaging, and ownership of mold data.

The shipment package should match the quotation. For a mold expected to operate for 5–10 years, the receiving plant should have approved 2D and 3D files, bill of materials, steel list, cooling diagram, hot-runner electrical information, final trial settings, dimensional report, spare-parts list, and maintenance instructions.

A supplier can then be scored with a fixed weighting: 25% engineering and DFM, 20% machining and dimensional control, 20% trial performance, 15% cooling and cycle planning, 10% project documentation, and 10% service and spare-parts support. A 92-point supplier with verified measurements and production records can be compared on the same basis with a 78-point supplier offering a lower tool price.
